Cut Model CUT-YG02 Miniature Hydraulic Cylinder for 1/12 kabolite Rc Excavatoy

NOTED :Due to limited inventory, there may be a shortage of stock, but please rest assured that we will usually ship it to you within 2 weeks after you place an order and pay. Of course, if you are in a hurry, please don't buy it, we do not accept urgent orders.

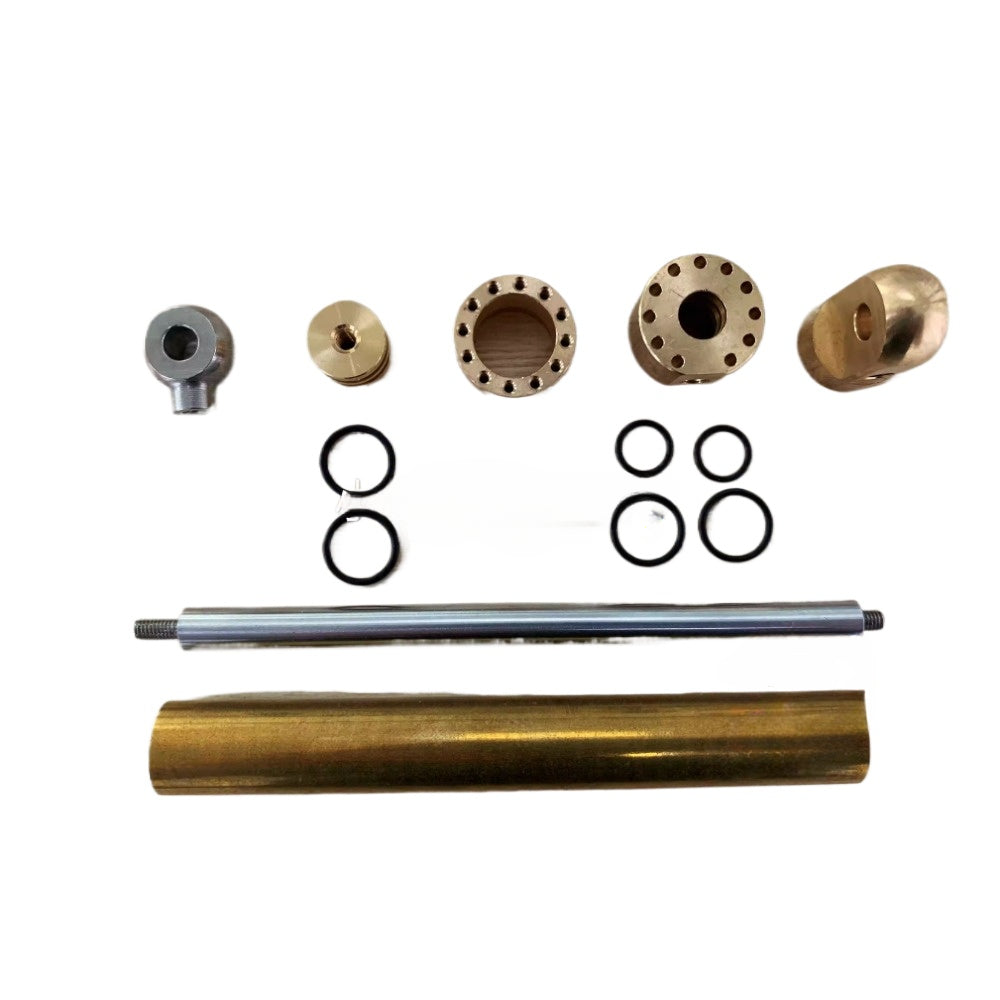

The oil cylinder structure adopts the real machine oil cylinder structure. The oil seal can be replaced when it is worn out. The finished product is all copper high-precision machining and welding. The oil seal is imported from Taiwan, which is wear-resistant and high-temperature resistant.

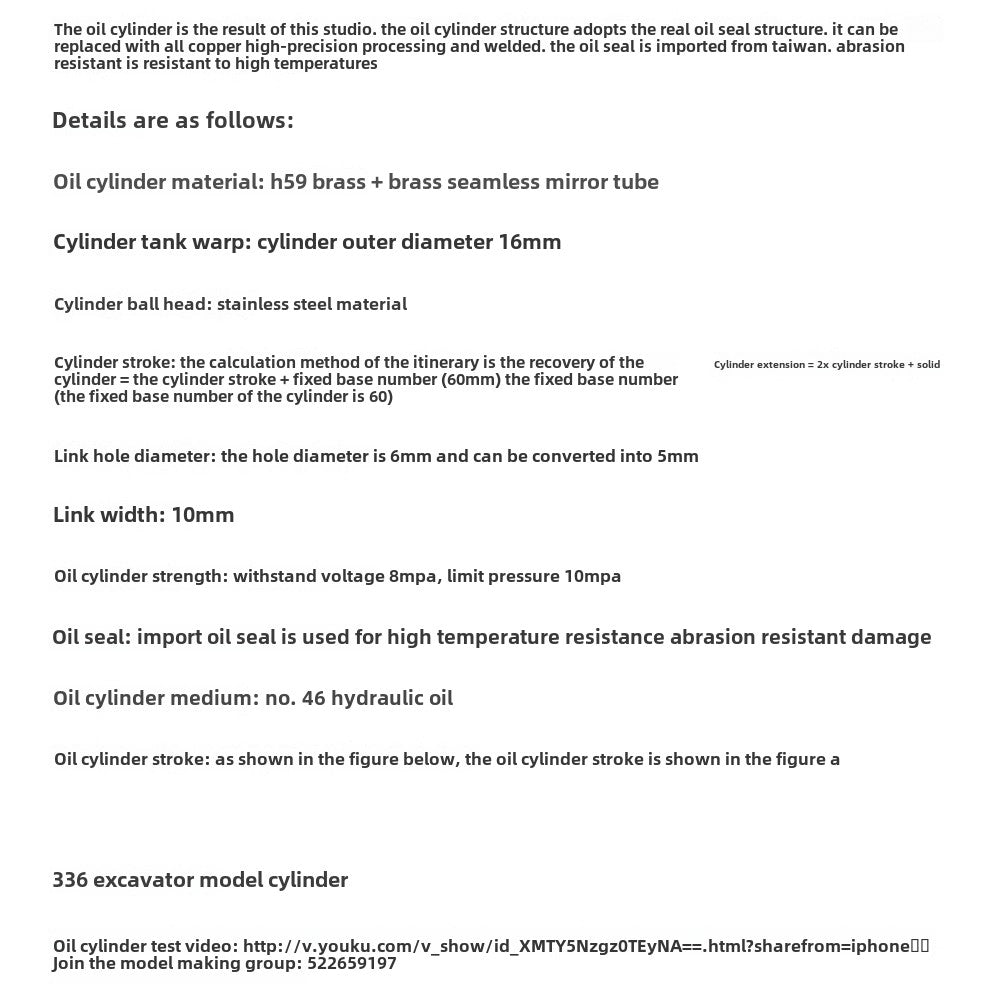

Details are as follows:

Oil cylinder material: H59 brass + brass seamless mirror tube

Cylinder diameter: outer cylinder diameter 16MM

Cylinder ball head: stainless steel

Cylinder stroke: The stroke is customized. The calculation method is: Oil cylinder retracted = oil cylinder stroke + fixed base (60MM) Oil cylinder extended = 2x oil cylinder stroke + fixed base (the fixed base of oil cylinder is 60)

Link hole diameter: the hole can be changed to 5MM by adding a sleeve to 6MM

Link Width: 10MM

Cylinder strength: pressure resistance 8MPA, ultimate pressure 10MPA

Oil seal: use imported oil seal, high temperature resistance and wear resistance

Cylinder medium: No. 46 hydraulic oil

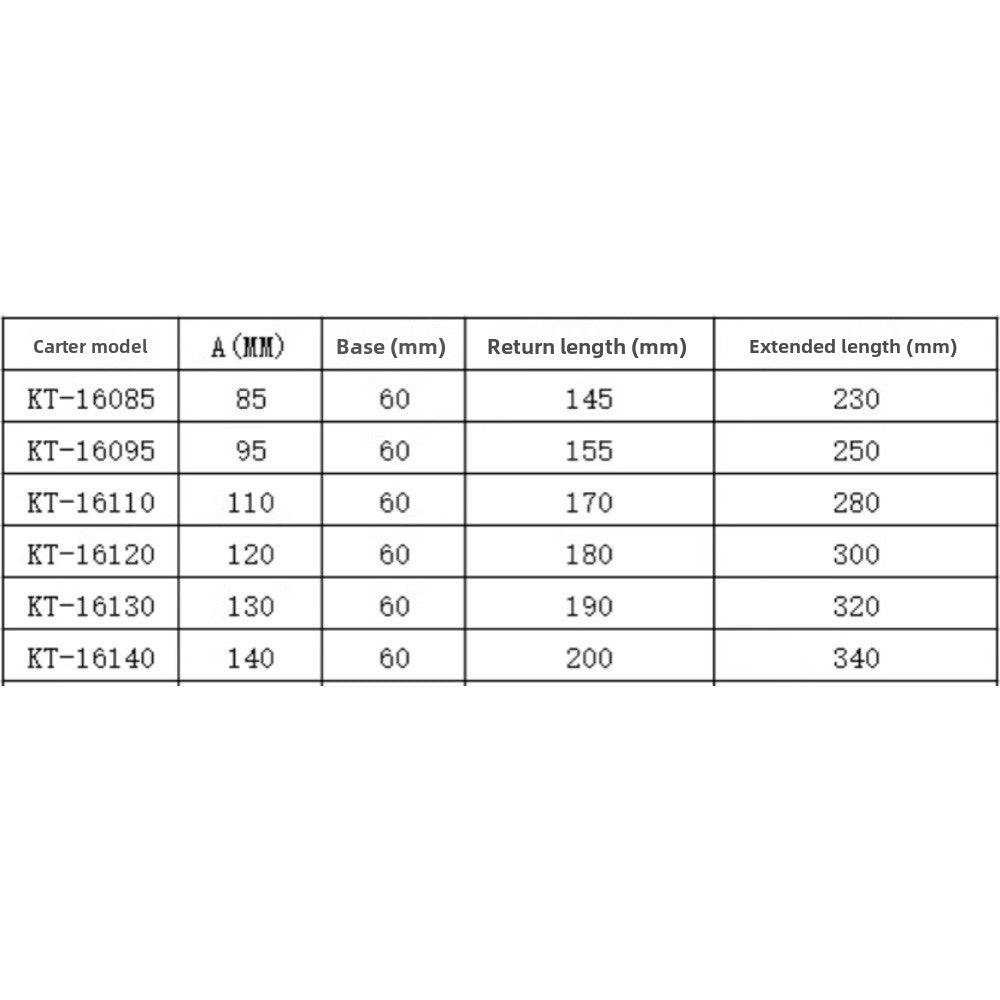

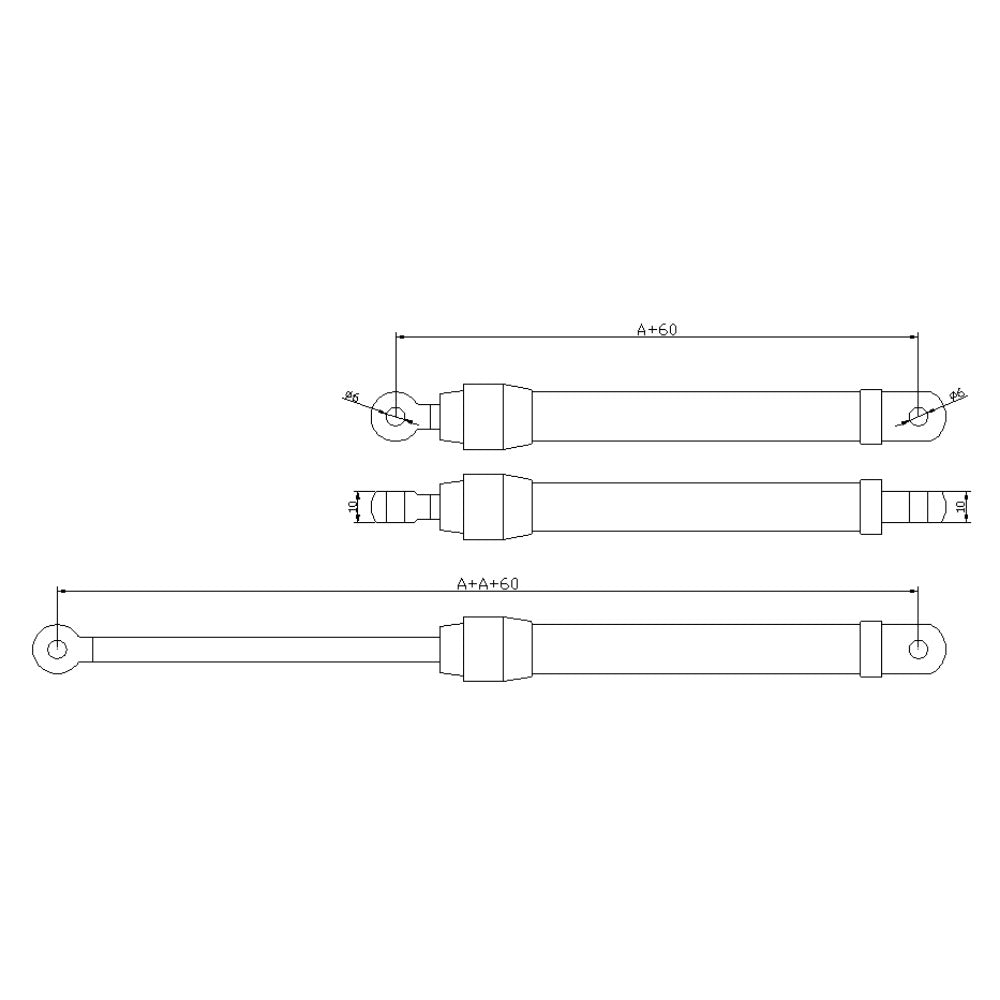

Cylinder stroke: as shown in the figure below, the dimension A in the figure represents the stroke of the cylinder

336 excavator model oil cylinder
package：1pcs
